Non-Metallic Expansion Joint

Non-Metallic Expansion Joint　Firm technology based on achievement

As a pioneer of non-metallic expansion joint market for over 50 years after foundation, we have been contributing to some kinds of plants and other industrial markets.
We would like to present further supports to you on the foundation of achievements and from new point of view

Expansion Joint for general piping

Please use this joint for protection piping by absorbing expansion and/or displacement under relatively low temperature, 200 degree (Celsius) or less.

1.Selection of model
Considering shape of piping (Round, Rectangular, and others), face-to face distance, rate of expansion and displacement, kinds of flowing liquids, temperature, pressure, etc., we present suitable model and specification to you.
2.Installation of sleeve
In order to prevent wear or damages to Bellows due to inside flowing liquid　including sludge, dewatering cake, powder, dusts, etc., we recommend installation of Sleeve. We also present suitable installation of Sleeve based on your operating conditions.
3.Selection of bellows or jabara
In the case that you need much expansion and/or displacement, we present Jabara with ring in order to absorb them.
Expansion Joint with Sleeve
Expansion joint with inside/outside rings

We also present special spec. upon your requests.

Expansion Joint

We present Expansion joint in order to absorb expansion and displacement of piping by heat at many kinds of plants, incineration plant, water treatment, etc.
As plants handling hot inside liquid, 200 degree Celsius or more, such as burning furnace, we present specification, materials of body, thickness of heat insulator, necessity of castable refractories, etc. to meet the operation conditions.

Hear resistant Expansion Joint (350 ℃ or more)
Heat resistant Expansion Joint with castable refractory (500 ℃ or more)

Structure of Expansion joint

Basic structures of Expansion joints are as follow ;

Structure Temperature range Operating Condition
Body Only Body Only Ambient temp.　to 200 ℃
  • ①Vibration isotator for blorer. dust, etc.
  • ②Absorption for expansion, displacement, slight vibration, etc.
  • ③Inside fluid : Not including any agents occurring abrasion.
Sleeve mounted Sleeve mounted Ambient temp.　to 200℃
  • ①Purpose of this model is the same as the above
  • ②Sleeve is needed if there is possibility to be occurred to wear or any damages of Body due to inside fulid.
Heat insulator and Sleeve mounted Heat insulator and Sleeve mounted 200℃　to 400℃
  • ①In the case of high temperature inside fluid including dust and special installating direction of Expansion joint, Sleeve is needed.
  • ②This model also is used for soundproofing.
Heat insulator and Sleeve mounted
for high-temperature operationHeat insulator and Sleeve mounted for high-temperature operation		 300℃ to 600℃
  • ①High temperature operation at 300℃ or more.
  • ②Heat insulator is located outside. Then there is not much influence on reduction of inside diameter.
Heat insulator and Sleeve mounted
for high-temperature operation with castable refractoryHeat insulator and Sleeve mounted For high-temperature operation with castable refractory		 500℃～1000℃ or more
  • ①Much more high temperature operation at 500 ℃ or more
  • ②Basic structure is the same as the above model, 300℃ to 600℃

※Thickness of castable refractory, actual inside diameter, and change of structure are decided through discussion with you.
  • ※1. The above specification and conditions are our standard ones. As to substantial actions, we fix through minute investigation.
  • ※2. Each expansion joint do not have complete airtightness.

Dustproof Jabara and Cover

1. Axle Cover

This protection cover is used for dustproof, vibration isolation, oil-proof, water-proof, and chemical-proof to drive axle, ball-thread. etc.

Air-release mesh window is available to release pressurized inside air due to expansion movement.

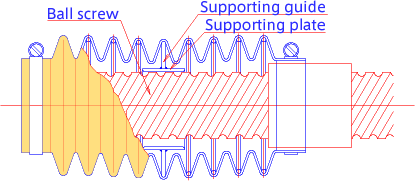

In the case there is possibility of sag at around middle position of the stroke, we install supporting guides as the following figure.

2. Protection cover of sliding face : C-shaped. Flat shape, etc.

This protection cover is used for dustproof, reducing adhesion of cutting lubricant, etc. on sliding face of machining tool, rail, drive axle, etc.

Due to operating conditions, we will present special model.

For instance :  Steel cover ; High temperature condition, prevention of damages by scattering chippings etc.
Take-up model ; Reduction of installation space.

3. P-P Seal

P-P Seal is sealing cover for entry protection of dust, foreign substance, rain water entry from clearance between building wall and piping.
Installation method depends on connection conditions between building wall and piping.
Installation of P-P seal with fastener is also available to existed building wall and piping.

Installation of through piping

Installation to building wall

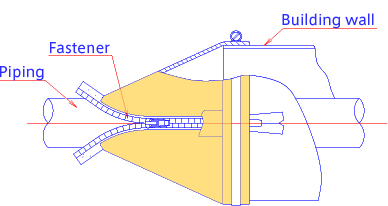

Installation of fastener model

4. Jabara and Cover for safety

This model is used to keep safe working place such as prevention of entangler or contact to driving axle, prevention of entry or falling to opening , prevention of hit to protuberance, protection of protuberance, prevention to splashing of cleaning water or chemical agents. We present suitable Jabara or Cover upon your requests.

5. Jabara for Collecting Trough

This jabara is used as Head race tube which track change of water level smoothly.

Structure of Jabara

Basic structures of Jabara are as follow ;

Structure Operation Conditions

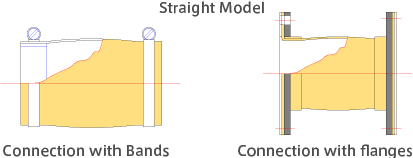

  • ①This model is basic one of Jabara. Any kinds of shapes are available, cylindrical-shaped, rectangular-shaped, and other odd-shaped ones.
  • ②Absorption of expansion, displacement, and slight-vibration is available.
  • ①This model can cover more absorption of expansion, displacement, and slight-vibration compared with Straight model.
  • ②This model is used mainly for Joint or cover for axle

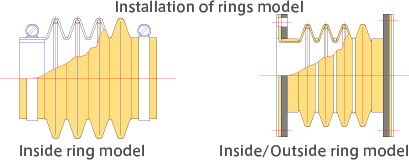

    Due to the movement, we chose inside ring model or both sides model

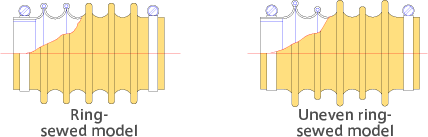

  • ①This model can cover much more absorption of expansion, displacement, and slight-vibration compared with Straight model.
  • ②In order to avoid out of position of springs, they are fixed to body by sewing.
  • ③More contraction is available due to uneven ring-sewed model
This model can cover much less expansion compared with Ring - sewed model.

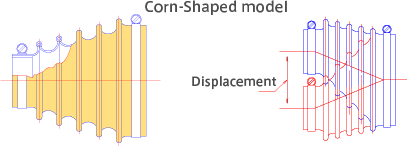

  • ①This model is used for connection of different sizes at each side.
  • ②In the case of adoption of Sewed model, eccentric movement is available.
Due to usage of zipper or Velcro, removal of Jabaro is available.

Due to operating conditions which Non-metallic expansion joint, Jabara, and Cover can not cover, we would also like to offer the following items;

① Metal expansion joint : Heat proof or pressure proof ⑤ Rubber hose
② Metal cover : Protection from oil or sparking ⑥ Rubber joint
③ Metal flexible hose : Fire proof, pressure proof, flexibility ⑦ Rubber joint for vibration proof and quakeproof
④ Teflon tube : Chemical agent proof

We can say we would present almost all items connecting piping. Please contact us when you have any requests or questions.

Request of quotation

As to request of quatation on Expansion joint Jabara, Cover, etc., please download a form and sent to us. via facsimile, +81-(0)3-3256-7827, or E-mail, info@green-tnj.co.jp, after filling in the form.

Click here for download of Questionnaire of Expansion Joint or Jabara >

Click here for download of Guestionnaire of Jabara for shaft cover >
